 Sheet Settings


2024/10/24 • 3 min. to read

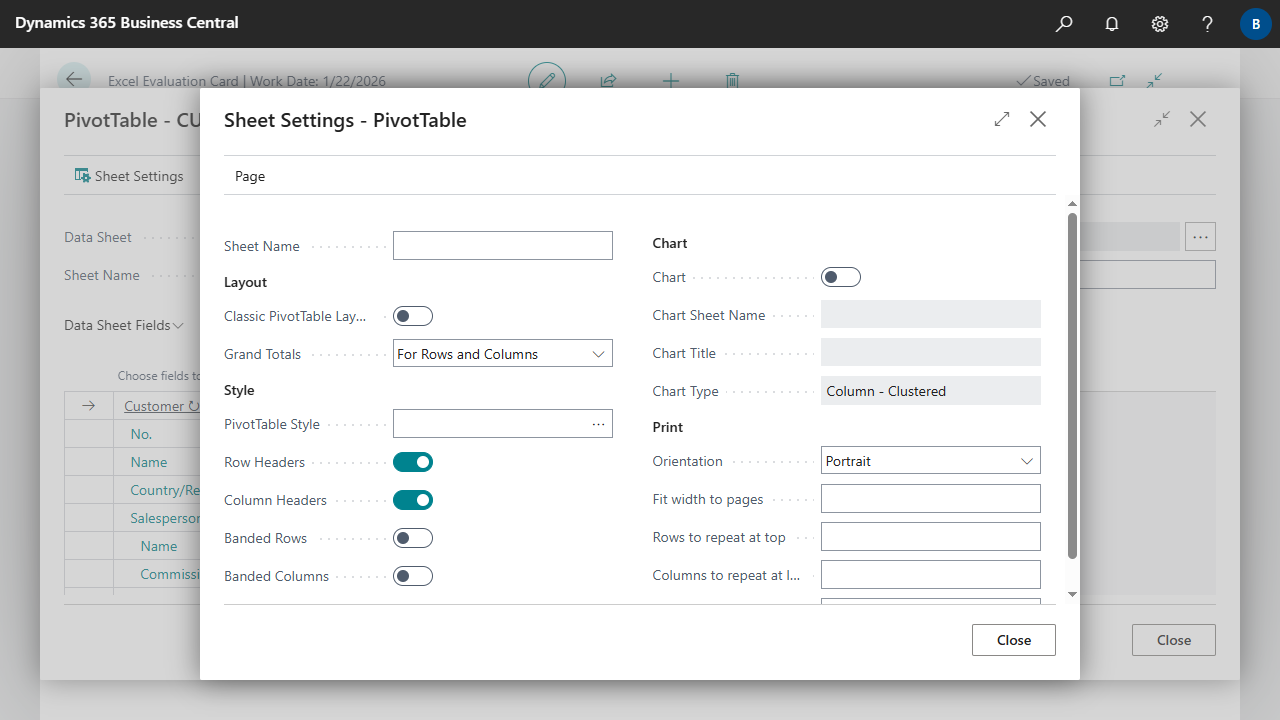

The Sheet Settings page is used to set up the general settings of the PivotTable Sheet.

Fields

Sheet NameSpecifies a name for the sheet. If no name is specified, the type of the sheet is used. It is additionally possible to specify the placeholder %1 in the text, which is replaced by the type of the sheet.

Layout, Fields

Classic PivotTable LayoutSpecifies whether the PivotTable should be created in Classic Layout by default. The Classic Layout enables dragging of fields in the grid. The default setting for the field can be set in the Excel Evaluation Setup.

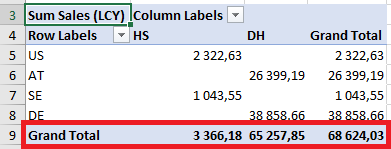

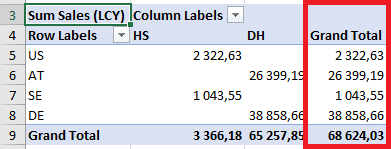

Grand TotalsSpecifies whether to display the grand totals next to the last column resp. at the bottom of the PivotTable. The grand total for rows is displayed next to the last column: The grand total for columns is displayed at the bottom of the PivotTable:

Style, Fields

PivotTable StyleSpecifies a style for the PivotTable. If the field is empty, the default setting from the Excel Evaluation Setup will be used.
Row HeadersSpecifies whether to display special formatting for the first row of the PivotTable.
Column HeadersSpecifies whether to display special formatting for the first column of the PivotTable.
Banded RowsSpecifies whether to display banded rows, in which even columns are formatted differently from odd rows.
Banded ColumnsSpecifies whether to display banded columns, in which even columns are formatted differently from odd columns.

Chart, Fields

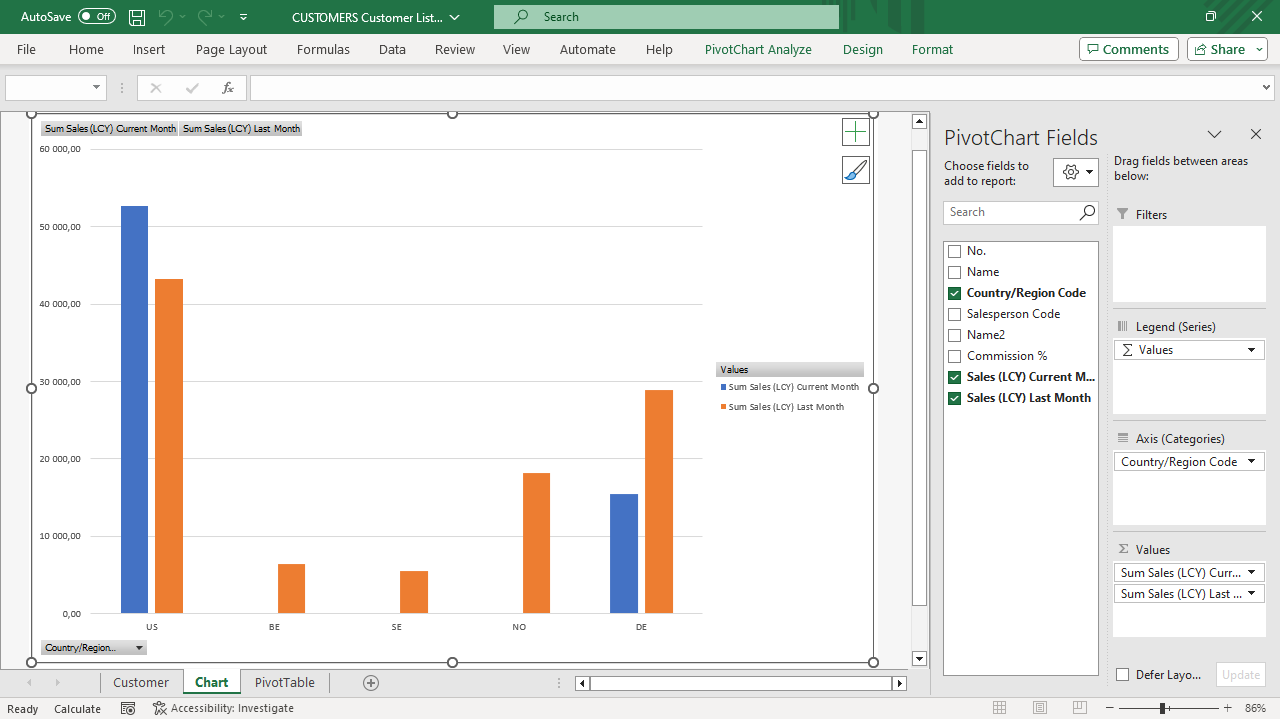

ChartSpecifies whether a chart should be created for the PivotTable. The chart will be created in a separate sheet.
Chart Sheet NameSpecifies a name for the chart sheet. If no name is specified, the type of the sheet is used. It is additionally possible to specify the placeholder %1 in the text, which is replaced by the type of the sheet.
Chart TitleSpecifies a title for the chart. A title will only be added to the chart if the field contains a value.
Chart TypeSpecifies the chart type.

Print, Fields

OrientationSpecifies the default print format for the worksheet.
Fit width to pagesSpecifies whether the size of the worksheet should be adjusted to fit on the specified number of pages.
Rows to repeat at topSpecifies a range to be printed on each page. For example, you can specify '$1:$1' for the first row of the worksheet.
Columns to repeat at leftSpecifies a range to be printed on each page. For example, you can specify '$A:$B' for the first two columns of the worksheet.
Page OrderSpecifies the sequence in which the worksheet data is numbered and printed if it does not fit on one page.
